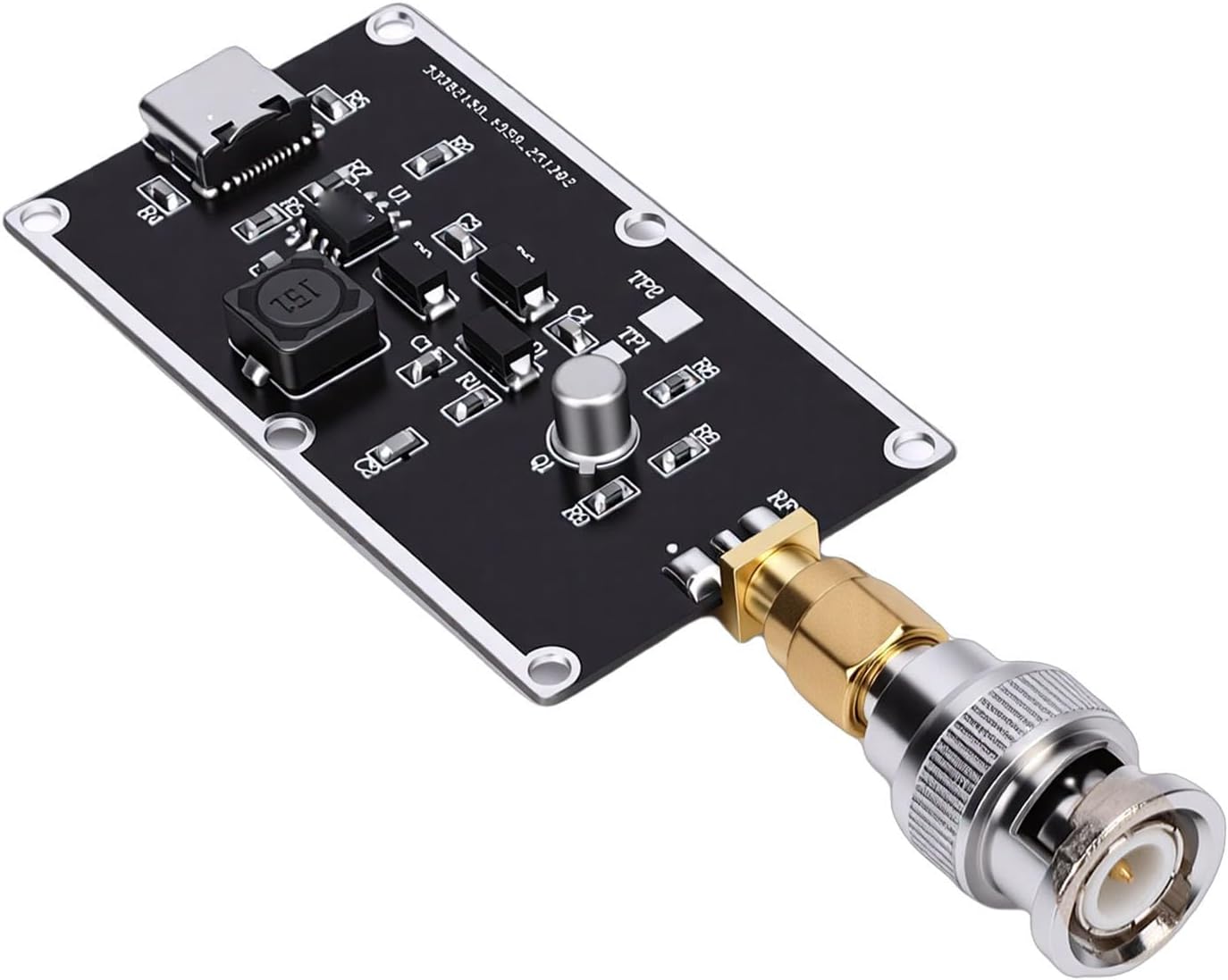

Risetime Pulse Generator, 350ps Fast Edges Gaussian Waveform with Independent Output, for Oscilloscope Bandwidth Testing TDR Cable Length Testing
4.7 (24 items)
Limited Time SaleUS$16.79 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 247352782 | Release Date | 2026/08/16 | List Price | US$11.20 | Model Number | 247352782 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Applicable Scenario: If you need a super wideband pulse generator with a super fast Gaussian rising edges (about 350ps), this one is your nice choice. Can measure the bandwidth of even the fastest laboratory instruments, characterize microwave components, serve as the basis for comb generators, or be integrated into time domain reflectometer (TDR) measurement systems
- Super Fast Rising Edges: The pulse period of the risetime pulse generator is approximately 82KHz, with an super fast rising edges of about 350ps (10-90% method)
- Working Principle: Due to its fast edges, this pulse generator can produce strong frequency components, thus enabling the testing and characterization of devices within the microwave frequency band
- Independent Actuator Output, High Amplitude: The pulse generator is very convenient even when used with the oscilloscope with the highest sampling rate because has an independent Actuator output and extremely low jitter relative to the signal output. Even when used in conjunction with splitters and injectors, its high output amplitude(typical value 1 Vpp) can provide sufficient power. A rising edges of 350ps or more fast, presenting a Gaussian waveform, can provide a clear reference signal for
- Functions and Applications: Pulse signal generator is suitable for scenarios such as oscilloscope bandwidth testing, TDR cable length testing, and HF pulse interference testing. The pulse width can be increased by lengthening the test cable
| ASIN | B0GLXR9FDY |
|---|---|
| Brand | MOTOULAX |
| Model | MOTOULAX32pux6mznt |
| Exterior | machined |
| Item Weight | 1.76 ounces |
| Manufacturer | MOTOULAX |
| Item model number | MOTOULAX32pux6mznt |
| Package Dimensions | 4.72 x 3.15 x 1.97 inches |
| Manufacturer Part Number | MOTOULAX32pux6mznt |
